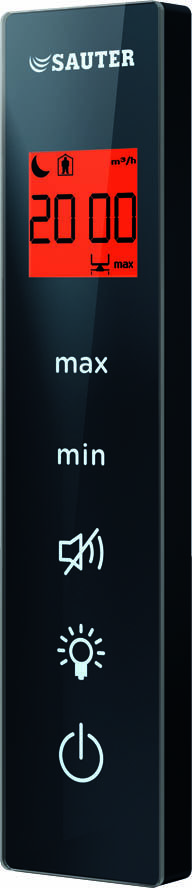

Fume-cupboard indicator and monitor

FCCP 200

Fume-cupboard indicator and monitor

How energy efficiency is improved

Display and interface for safe, energy-efficient monitoring of fume cupboards, pressure zones and other ambient conditions with an attractive design and state-of-the-art technology


Funktioner

  • Measured value display and indication of operating statuses for a range of ambient conditions such as pressure, temperature, relative humidity etc. in combination with an EY‑RC 504/505 room automation station or an ASV 2*5 VAV compact controller

  • Monitoring fume cupboards as per EN 14175‑2 to check that they are functioning correctly and that the ventilation is operated to provide maximum safety for the laboratory staff

    • Indication when the front sash is open > 500 mm

    • Switching the fume cupboard lighting on and off

    • Up to two function indicators for double-sided fume cupboards

    • Indication of day/night change-over

    • Audible alarm can be delayed or muted via configuration

  • Demand-controlled regulation of fume cupboards as per EN 14175‑6 in combination with the ASV 2*5 VAV compact controller

  • Function indicator with visual and audible notification as per EN 14175‑2

  • Storage of all defined parameters with protection from power failure

  • Interface for easy configuration of the connected VAV ASV 2*5

  • Five freely configurable push-buttons

  • Chemical-resistance glass surface

  • Units that can be displayed: m/s, fps, l/s, m3/h, cfm, Pa, °C, °F, %rh, ppm
